产品说明

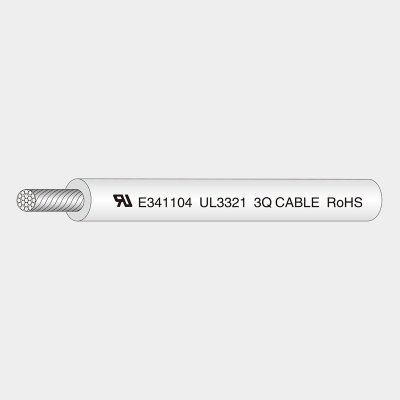

1.额定温度：150℃ 2.额定电压：600V 3.执行标准：UL758，UL1581 4.导体使用单根或绞合30-4/0AWG镀锡或裸铜丝 5.绝缘采用交联阻燃聚乙烯材料 6.通过UL VW-1 — CSA FT1 垂直燃烧 7.绝缘厚度均匀，易剥，易裁 8.产品符合欧盟RoHS要求 9. 产品广泛用于一般电子，电器设备内部连接线 | 1. Rated temperature:150ºC 2.Rated voltage:：600V 3.According to:UL subject 758,UL1581 4.Solid or Stranded,tinned or bare copper conductor 30-4/0AWG 5.Cross-Linked Polyolefin Insulated Wire 6.Passes UL VW-1 & CSA FT1 Vertical flame test 7.Uniform insulation thickness of wire to ensure easy stripping and cutting 8.Environmental testing pass RoHS 9.Use for general electric equipment internal wiring |
产品规格
| UL型号 | 导体线规(AWG) | 导体结构 Conductor | 导体外径(mm) | 绝缘厚度(mm) | 电缆外径(mm) | 最大导体电阻 （Ω/km） | 标准包装长度 | |
| Standard pup-up | ||||||||
| UL TYPE | Gauge(AWG) | Construction (no/mm) | Conductorouter diameter(mm) | Insulation thickness (mm) | Wire O.D(mm) | Max Cond.resistance （Ω/km ,20ºC） | FT/ROLL | METER/ROLL |
| UL3321 | 26 | 7/0.16 | 0.48 | 0.76 | 2.10 | 150 | 2000 | 610 |
| 24 | 11/0.16 | 0.61 | 2.20 | 94.2 | ||||
| 22 | 17/0.16 | 0.76 | 2.40 | 59.4 | ||||
| 20 | 21/0.178 | 0.94 | 2.60 | 36.7 | ||||
| 18 | 16/0.254 | 1.17 | 2.80 | 23.2 | ||||
| 16 | 26/0.254 | 1.49 | 3.10 | 14.6 | 1000 | 305 | ||
| 14 | 41/0.254 | 1.87 | 3.50 | 8.96 | ||||
| 12 | 65/0.254 | 2.36 | 4.00 | 5.64 | ||||
| 10 | 105/0.254 | 3.00 | 4.70 | 3.546 | ||||
| 8 | 164/0.254 | 3.80 | 1.14 | 6.50 | 2.23 | 492 | 150 | |
| 6 | 260/0.254 | 4.80 | 7.70 | 1.403 | ||||
| 4 | 412/0.254 | 6.00 | 9.10 | 0.882 | 328 | 100 | ||
| 2 | 665/0.254 | 7.70 | 1.52 | 11.50 | 0.5548 | / | REEL | |
| 1 | 820/0.254 | 8.50 | 2.03 | 13.90 | 0.4398 | |||
| 1/0 | 1035/0.254 | 9.60 | 14.80 | 0.3487 | ||||
| 2/0 | 1311/0.254 | 10.80 | 16.00 | 0.2766 | ||||
| 3/0 | 1650/0.254 | 12.20 | 17.50 | 0.2194 | ||||
| 4/0 | 2090/0.254 | 13.80 | 19.50 | 0.1722 | ||||
