产品说明
1.额定温度：200ºC 2.额定电压：10000V DC 3.执行标准：UL758，UL1581 4.导体使用单根或绞合24AWG-10AWG镀锡或裸铜丝 5.绝缘采用硅橡胶绝缘 6.通过UL FT2 水平燃烧 7.绝缘厚度均匀，易剥，易裁 8.环保要求：符合RoHS标准 9.电视接收机的内部接线或已由保险商实验室确定可接受性的地方 | 1.Rated temperature:200ºC 2.Rated voltage:10000V DC 3.According to:UL subject 758,UL1581 4.Solid or Stranded,tinned or bare copper conductor 24AWG-10AWG 5.SR insulation. 6.Passes FT2 Horizontal flame test 7.Uniform insulation thickness of wire to ensure easy stripping and cutting. 8.Environmental testing pass RoHS 9.Internal wiring of TV receivers or where the acceptability has been determined by Underwriters Laboratories |
产品规格
| UL型号 | 导体线规(AWG) | 导体结构 Conductor | 导体外径(mm) | 绝缘厚度(mm) | 电缆外径(mm) | 最大导体电阻（Ω/km） | 标准包装长度 | |
| Standard pup-up | ||||||||
| UL TYPE | Gauge(AWG) | Construction(no/mm) | Conductor outer diameter(mm) | Insulation thickness (mm) | Wire O.D(mm) | Max Cond.resistance（Ω/km ,20ºC） | FT/ROLL | METER/ROLL |

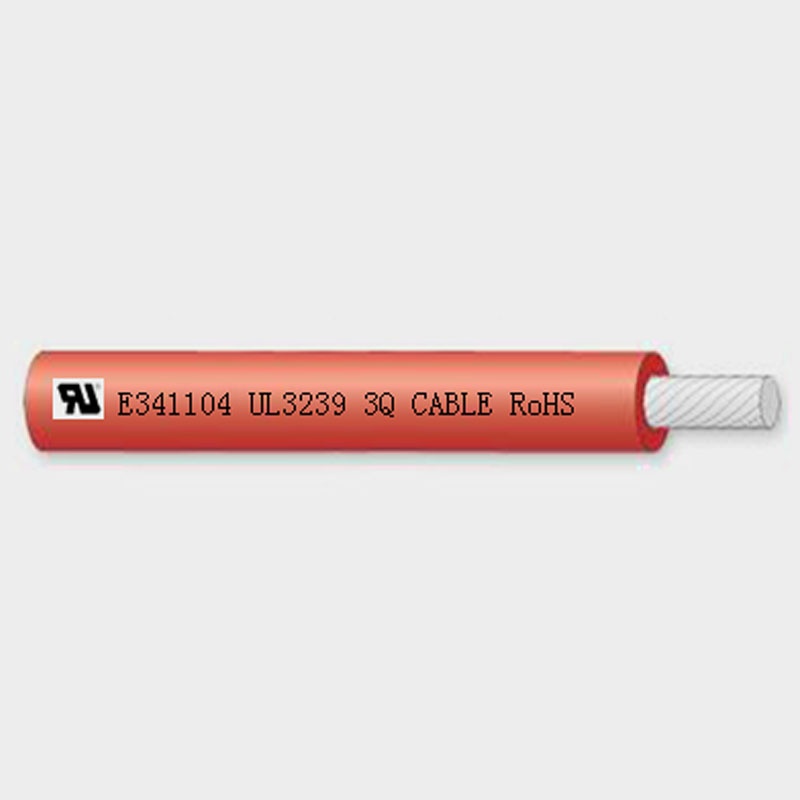

| UL3239 | 24 | 11/0.16 | 0.61 | 0.84 | 2.30 | 94.2 | 2000 | 610 |
| 22 | 17/0.16 | 0.76 | 2.50 | 59.4 | ||||
| 20 | 21/0.178 | 0.94 | 2.70 | 36.7 | ||||
| 18 | 16/0.254 | 1.17 | 2.90 | 23.2 | ||||
| 16 | 26/0.254 | 1.49 | 3.30 | 14.6 | 1000 | 305 | ||
| 14 | 41/0.254 | 1.87 | 3.70 | 8.96 | ||||
| 12 | 65/0.254 | 2.36 | 4.20 | 5.64 | ||||
| 10 | 105/0.254 | 3.00 | 4.90 | 3.546 | ||||
