产品说明
1.额定温度：200℃ 2.额定电压：600V AC 3.执行标准：UL758，UL1581 4.导体使用单根或绞合18AWG-10AWG镀锡或裸铜丝 5.绝缘采用硅橡胶绝缘 6.通过UL FT2 水平燃烧 7.绝缘厚度均匀，易剥，易裁 8.环保要求：符合RoHS标准 9. 舞台照明灯具的供应线，其组合的可接受性由保险商实验室公司决定 | 1. Rated temperature:200ºC 2.Rated voltage:600V AC 3.According to:UL subject 758,UL1581 4.Solid or Stranded,tinned or bare copper conductor 18AWG-10AWG 5.SR insulation. 6.Passes FT2 Horizontal flame test 7.Uniform insulation thickness of wire to ensure easy stripping and cutting. 8.Environmental testing pass RoHS 9.Supply leads for stage lighting fixtures where the acceptability of the combination is determined by Underwriters Laboratories Inc.. |
产品规格
| UL型号 | 导体线规(AWG) | 导体结构 Conductor | 导体外径(mm) | 绝缘厚度(mm) | 电缆外径(mm) | 编织 Braid | 最大导体电阻（Ω/km） | 标准包装长度 | |
| Standard pup-up | |||||||||
| UL TYPE | Gauge(AWG) | Construction(no/mm) | Conductorouter diameter(mm) | Insulation thickness (mm) | Wire O.D(mm) | Construction (mm) | Max Cond.resistance （Ω/km ,20ºC） | FT/ROLL | METER/ROLL |

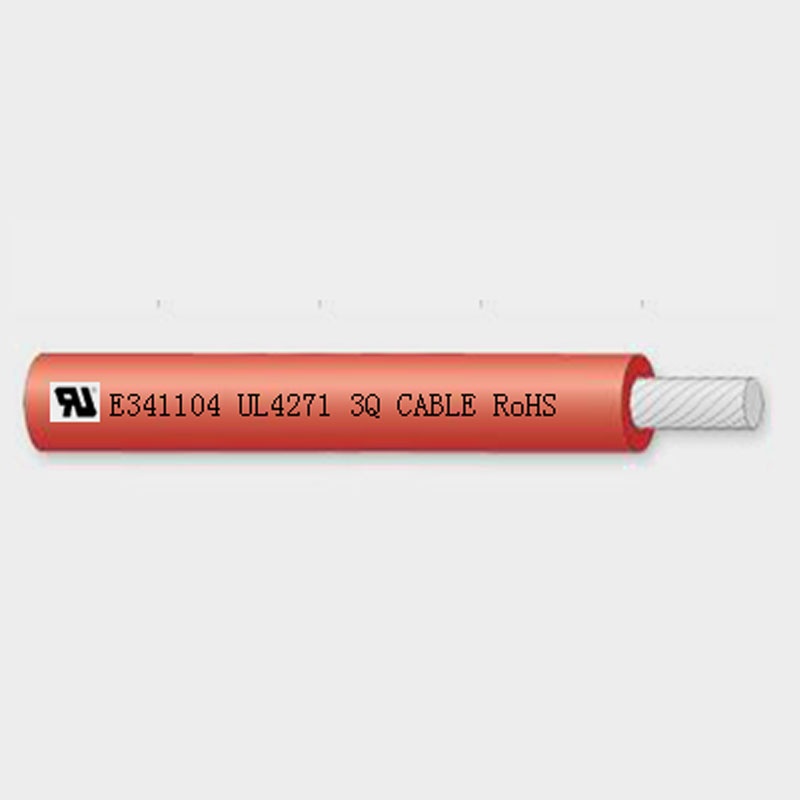

| UL4271 | 18 | 16/0.254 | 1.17 | 0.76 | 2.80 | 0.15 | 23.2 | 1000 | 305 |
| 16 | 26/0.254 | 1.49 | 3.10 | 0.15 | 14.6 | ||||
| 14 | 41/0.254 | 1.87 | 3.50 | 0.15 | 8.96 | ||||
| 12 | 65/0.254 | 2.36 | 4.00 | 0.15 | 5.64 | ||||
| 10 | 105/0.254 | 3.00 | 4.70 | 0.15 | 3.546 | ||||
