产品说明
1.额定温度：150ºC 2.额定电压：4000V AC 3.执行标准：UL758，UL1581 4.导体使用单根或绞合40AWG-4/0AWG镀锡或裸铜丝 5.绝缘采用交联聚乙烯绝缘 6.通过UL VW-1 — CSA FT1 垂直燃烧 7.绝缘厚度均匀，易剥，易裁 8.环保要求：符合RoHS标准 9. 产品广泛用于一般电子，电器设备内部连接线 | 1. Rated temperature:150ºC 2.Rated voltage:4000V AC 3.According to:UL subject 758,UL1581 4.Solid or Stranded,tinned or bare copper conductor 40AWG-4/0AWG 5.XLPE insulation 6.Passes UL VW-1 & CSA FT1 Vertical flame test 7.Uniform insulation thickness of wire to ensure easy stripping and cutting 8.Environmental testing pass RoHS 9.The wire can use for the Internal wiring of appliances where exposed to oil at a temperature not exceeding |
产品规格
| UL型号 | 导体线规 (AWG) | 导体结构 Conductor | 导体外径 (mm) | 绝缘厚度 (mm) | 电缆外径 (mm) | 最大导体电阻 (Ω/km) | 标准包装长度 | |
| Standard pup-up | ||||||||
| UL TYPE | Gauge (AWG) | Construction (no/mm) | Conductorouter diameter(mm) | Insulation thickness (mm) | Wire O.D(mm) | Max Cond.resistance (Ω/km ,20ºC) | FT/ROLL | METER/ROLL |

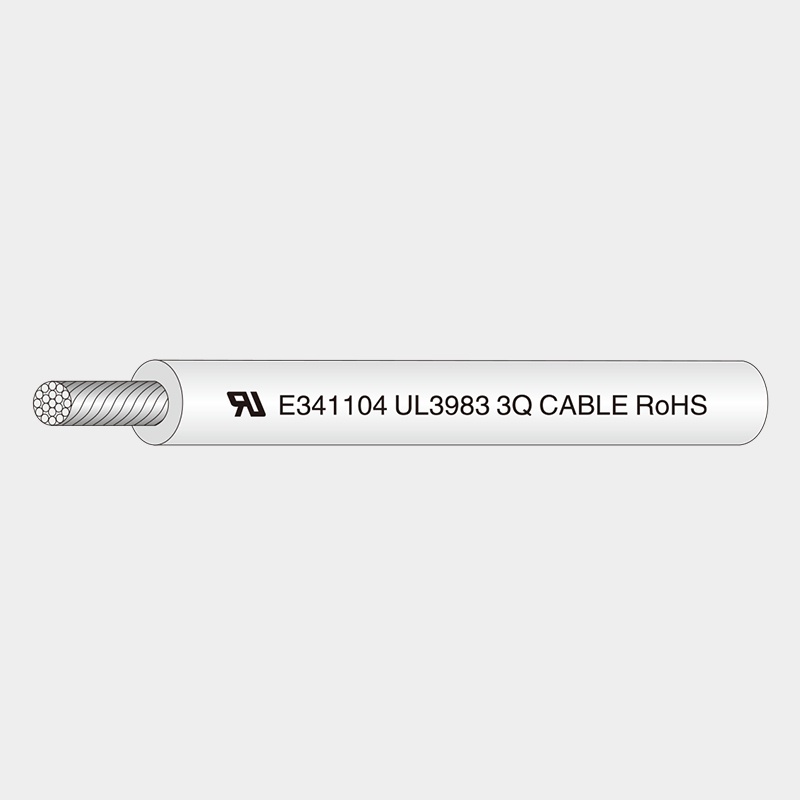

| UL3983 | 26 | 7/0.16 | 0.48 | 0.76 | 2.10 | 150 | 2000 | 610 |
| 24 | 11/0.16 | 0.61 | 2.20 | 94.2 | ||||
| 22 | 17/0.16 | 0.76 | 2.40 | 59.4 | ||||
| 20 | 21/0.178 | 0.94 | 2.60 | 36.7 | ||||
| 18 | 16/0.254 | 1.17 | 2.80 | 23.2 | ||||
| 16 | 26/0.254 | 1.49 | 3.10 | 14.6 | 1000 | 305 | ||
| 14 | 41/0.254 | 1.87 | 3.50 | 8.96 | ||||
| 12 | 65/0.254 | 2.36 | 4.00 | 5.64 | ||||
| 10 | 105/0.254 | 3.00 | 4.70 | 3.546 | ||||
| 8 | 164/0.254 | 3.80 | 1.14 | 6.50 | 2.23 | 492 | 150 | |
| 6 | 260/0.254 | 4.80 | 7.70 | 1.403 | ||||
| 4 | 412/0.254 | 6.00 | 9.10 | 0.882 | 328 | 100 | ||
| 2 | 665/0.254 | 7.70 | 1.52 | 11.50 | 0.5548 | / | REEL | |
| 1 | 820/0.254 | 8.50 | 2.03 | 13.90 | 0.4398 | |||
| 1/0 | 1035/0.254 | 9.60 | 14.80 | 0.3487 | ||||
| 2/0 | 1311/0.254 | 10.80 | 16.00 | 0.2766 | ||||
| 3/0 | 1650/0.254 | 12.20 | 17.50 | 0.2194 | ||||
| 4/0 | 2090/0.254 | 13.80 | 19.50 | 0.1722 | ||||
